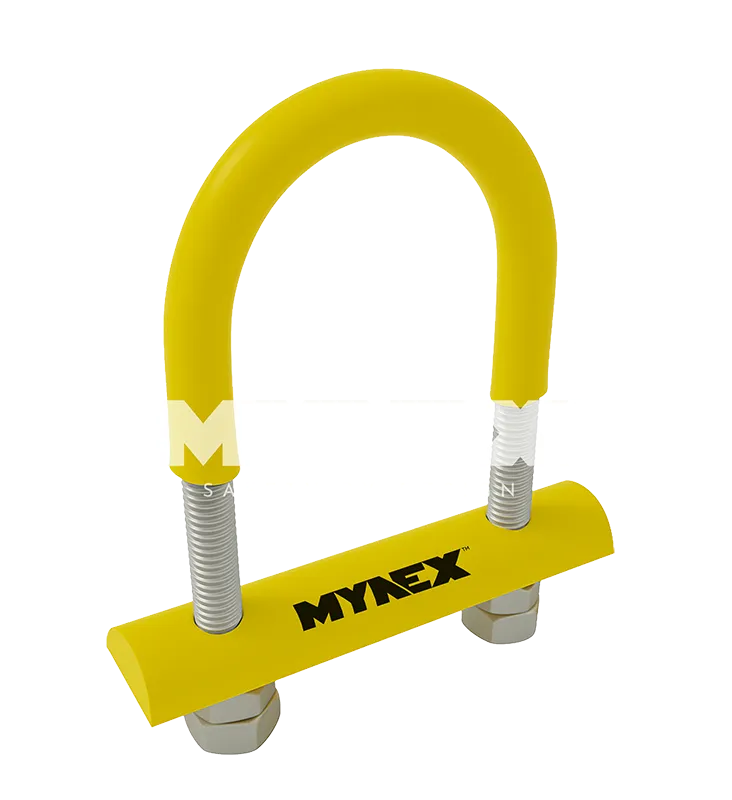

Insulated U Bolt Guide

MYNEX’s Insulated U-Bolt Guide provides a durable, corrosion-resistant pipe support solution for a wide range of industrial applications. Each assembly features a galvanised or stainless-steel U-bolt with a dual-wall, UV-resistant polyolefin sheath and a specialised high-load bearing polyamide insulating support guide. The Insulated U-Bolt Guide ensures long-term protection against wear, vibration, and galvanic corrosion while maintaining secure, guided pipe alignment.

Select your options and get a quote!

Select your NB size:

Provide your details:

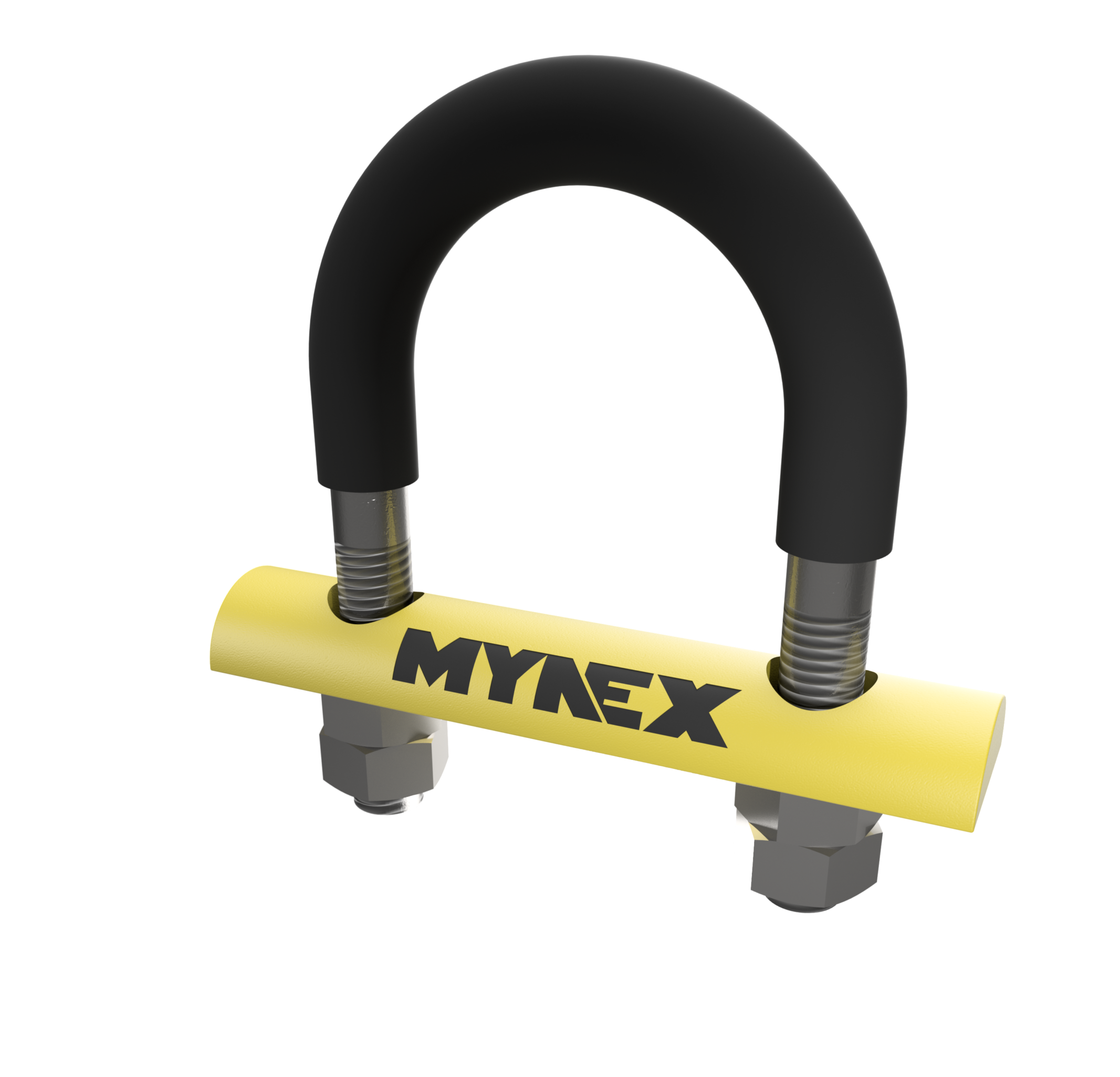

Insulated U-Bolt Guide
  • Provides isolation between pipe spool and support
  • UV and Corrosion-resistant design for harsh industrial environments
  • High-load bearing insulating support guide for superior wear and impact resistance
  • Double Hex Nuts to ensure secure and stable assembly.
  • Heavy Duty U-Bolt: Galvanised or stainless steel
  • Polyamide Bearing Pad
  • Service temperature: –40 °C to 90 °C (continuous), 150 °C max short-term, 230 °C melting point
  • Full size range from 15NB to 900NB Pipe
  • Industrial piping systems requiring guided or insulated supports
  • Mining and mineral processing pipelines
  • Slurry, and chemical transfer lines
  • Oil, gas, and petrochemical installations
  • Power generation and energy infrastructure
  • Marine and offshore environments
  • HVAC, fire, and utility service pipework
